We no longer produce this body. However, from this information you may be able to choose an alternative, make your own or use an engobe. The recipe of this body was:
It is a high temperature, plastic, light buff burning lightly grogged stoneware containing Helmer Kaolin. Most wood firing is done to achieve an effect called "flashing", generally an orange/red/brown coloration on the unglazed body surface. It is known that certain ball clays and kaolins flash better than others (specifically Helmer Kaolin, also #6 Tile).
Philosophies and body preferences vary greatly in the woodfire community, please test this material in your circumstances.
Since the recipe is here you could mix it yourself (if you have facilities to do that). If you are firing past cone 10 you could wedge together H550 and H441G to get about the same maturity and fired color as Woodfire. However testing will be required to see if it flashes well. If you are firing to cone 10 or lower, then any of our cone 10R bodies will work, their color at cone 10R will be a good indication of how they will appear in wood firings.
Engobes and slips are the best method to get flashing on surfaces. Their advantage is that you can employ high percentages of materials known to flash (and be able to use any stoneware body underneath them). Simply apply these to our stoneware bodies. Engobes are applied more thickly at the leather hard stage and they need to have about the same fired shrinkage as the body. Here is an flashing engobe (L3954M) we have been testing (you must test it yourself also):
Nepheline Syenite 17 Silica 18 Helmer Clay 60 Calcined Alumina 5 Bentonite 5
We found that this one does not work at the normal 1.43-1.45 specific gravity (used for glazes), it needs more water (about 140g per 100 of powder).
While 10% fine grog has been added, the feel of this body is quite smooth. The high kaolin content coupled with the plasticity of additional ball clay impart a throwing character similar to a Lincoln Fireclay body, very pleasant to work with. Since this body is quite plastic we recommend care in drying (even though it contains grog).
Casting: Helmer kaolin responds well to deflocculants so this body should work well (although it might cast slower than others because of the high clay content). It would be best to remove the grog from the recipe, this will lower the fired porosity somewhat. Consider using 50% Helmer (instead of 30 Helmer and 20 #6 Tile) for the best possible flashing.
Plainsman Woodfire clay is a stoneware, suitable for functional pottery. It is less vitreous than our other cone 10R buff burning stoneware bodies (e.g. H550, H450) to give margin for over-firing (since wood firings after exceed cone 10). If your wood kiln goes higher than cone 10 the typical 3% porosity will drop producing a fairly vitreous result (by cone 12 this could drop to 1% producing quite a vitreous product). Some isolated iron speckles will occur in reduction firing, these are from the grog and Helmer.

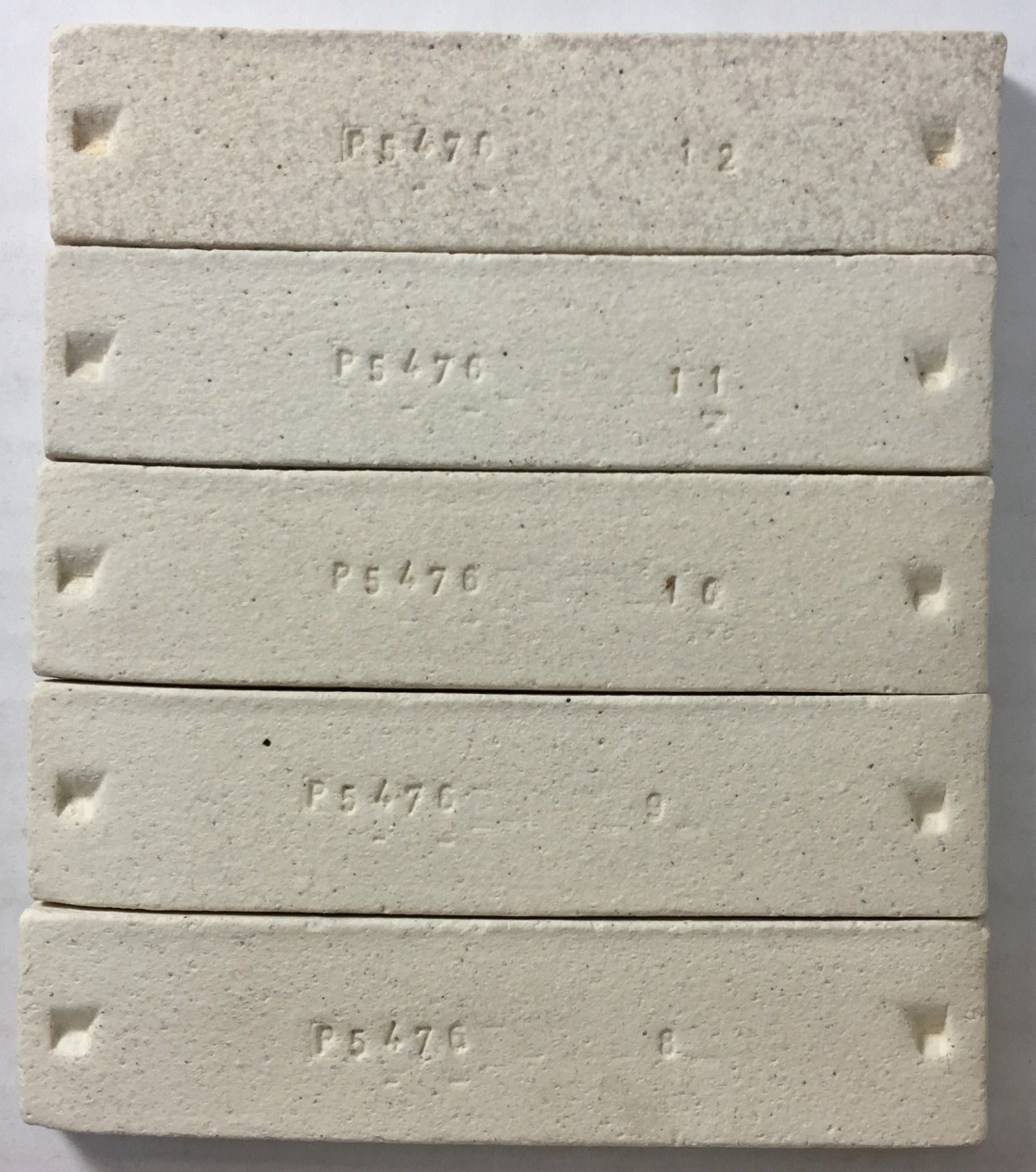

Woodfire Clay fired bars. Cone 10R (top), cone 10, 9, 8 oxidation below. These are all fired in an electric kiln, thus there is no flashing effect.
Here is an example of a flashing effect achieved in a the kiln at the Medalta Artists in Residence program.
We do not supply a thermal expansion value. The reason is that such numbers often mislead users. First, a body has different thermal expansion characteristics when fired at different temperatures, schedules and atmospheres. Dilatometers are only useful when manufacturers can measure bodies and glazes over time and in the same firing conditions. If a chart is supplied here, please view only as a way to compare one body with another.
Another significant issue is that many customers compare measured thermal expansion numbers with calculated values of glazes in efforts to fits those glazes to a body. This does not work. Calculated values are relative only and have limitations that must be understood. The best way to fit glazes to your clay bodies is by testing, evaluation, adjustment and retesting. For example, if a glaze crazes, adjust its recipe to bring the expansion down (using your account at insight-live), fire a glazed piece and thermal stress it (using an IWCT test, 300F into ice-water). If it still crazes, repeat the process.
If we recommend a base clear or glossy glaze, try calculating the expansion of that as a rough guide to know whether your glazes will fit.
Drying Shrinkage: 6.0-6.5%
Sieve Analysis (Tyler mesh):
+35mesh: 2.0-3.0% 35-48: 2.0-3.0 48-65: 3.0-5.0 65-100: 3.0-5.0 100-150: 2.0-4.0
Cone 8: 6.5-7.5% Cone 10: 7.0-8.0 Cone 10R: 7.5-8.5
Cone 8: 6.0-7.0% Cone 10: 3.5-4.5 Cone 10R: 2.5-3.5
Safety Data SheetClick here for web view.
